中文名称: Graphene Supermarket氮化硼分散液
英文名称: Boron Nitride Dispersion
CAS号: 10043-11-5
包 装: 5.4mg/L / 9-10mg/L
参 数: 5.4mg/L 100ml 1-5层
浓 度: 9-10 mg/L
保质期: 6月常温干燥避光
Boron Nitride (BN) Pristine Flakes in Solution, 100 ML
BN Pristine Flakes are nanoscale crystals dispersed in ethanol / water solution. Solution of nano-BN has a white translucent color, in contrast to the milky suspension of micro-sized BN flakes.
Graphene Supermarket氮化硼分散液Properties:
Lateral Size: 50-200 nm
Thickness: 1-5 Monolayers
Purity in Dry Phase: >99%
Solution Concentration: 5.4 mg/L
Solution is stable under ambient conditions
SEM image of a BN flake

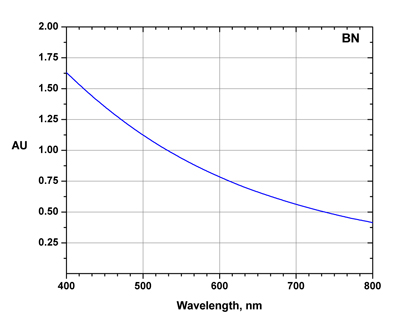

UV-Visible Absorption Spectrum
Boron nitride is a chemical compound with chemical formula BN, consisting of equal numbers of boron and nitrogen atoms. BN is isoelectronic to a similarly structured carbon lattice and thus exists in various crystalline forms. The hexagonal form corresponding to graphite is the most stable and softest among BN polymorphs, and is therefore used as a lubricant and an additive to cosmetic products.

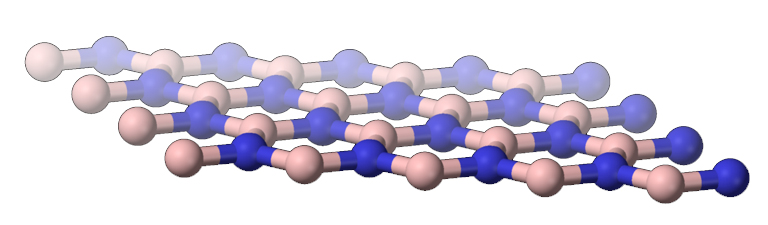

Depiction of BN Molecular Structure
Preparation Method: Solution-based Exfoliation

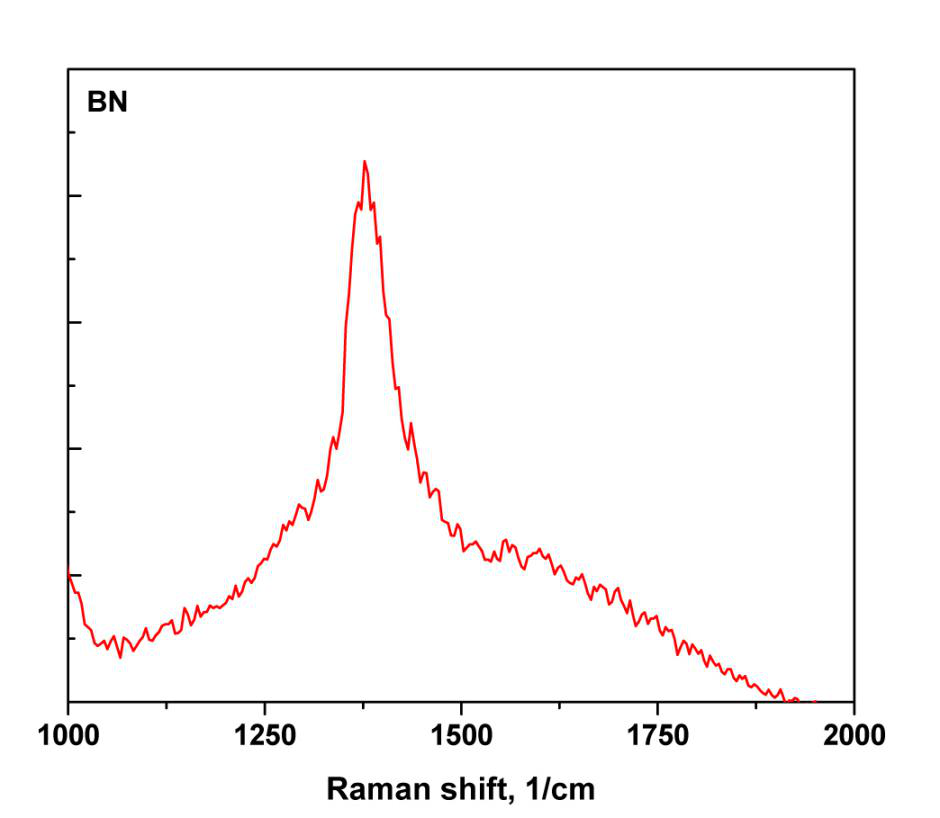

BN Raman Spectrum
Applications
Dielectric Layer in Transistors
Hybrid Materials
BN Research
Inks
Thin Insulating Films
Protective Coatings
Deep Ultraviolet (DUV) Emitters
Check out our WS2, MoS2, BN trial pack if you would like to test all three NEW products by clicking HERE!
Academic References:
Electronics and optoelectronics of two-dimensional transition metal dicalcogenides, Wang et al. Nature Nanotechnology, 7 (2012), pp. 699-712
